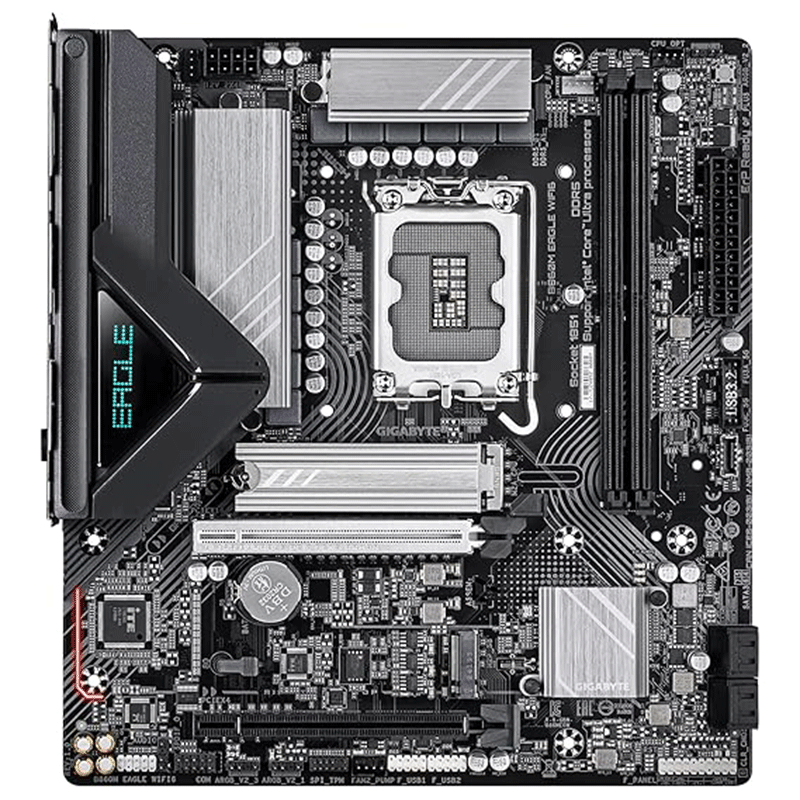

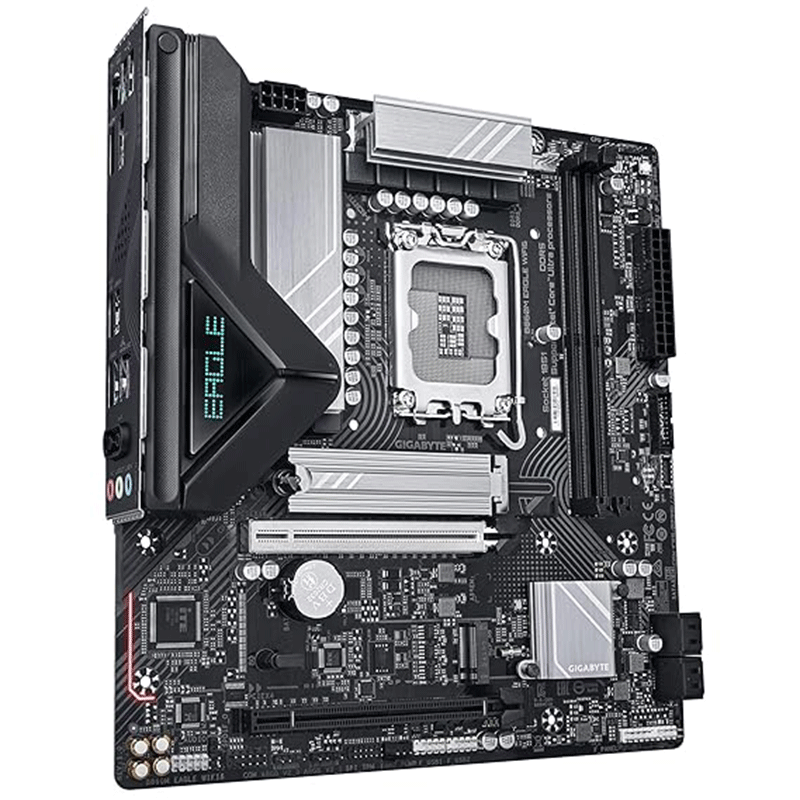

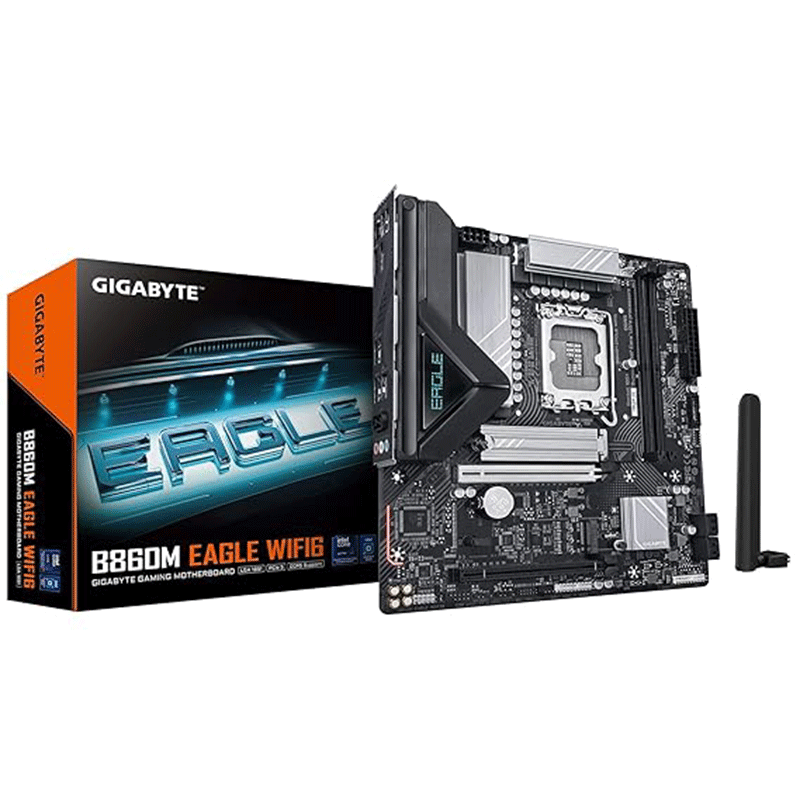

GIGABYTE B860M Eagle WIFI6 Micro-ATX Motherboard
Original price was: ₹22,800.00.₹14,600.00Current price is: ₹14,600.00.
The GIGABYTE B860M Eagle WIFI6 is a Micro-ATX motherboard designed for Intel Core Ultra processors (Series 2) on the LGA1851 socket, featuring robust 8+1+2 phase power design, DDR5 support, and PCIe 5.0. It offers high-speed Wi-Fi 6E, 2.5GbE LAN, and DIY-friendly features like EZ-Latch for M.2/PCIe.
Description
Features and Specifications
- Processor Support: Supports Intel Core Ultra processors (Series 1 and 2) using the LGA 1851
- Form Factor: The motherboard uses a compact micro-ATXform factor.
- Memory: Features 2 or 4 DIMM slots (depending on the specific revision/retailer listing) supporting dual-channel DDR5memory with overclocking speeds up to 9066 MT/s. It also includes AI-driven memory optimization features like D5 Bionic Corsa.
- Connectivity:
- Networking: Equipped with Intel Wi-Fi 6(802.11ax) and 5GbE LAN for high-speed wired and wireless internet. It also supports Bluetooth 5.3.
- Storage: Includes two M.2 slots, with one supporting the ultra-fast PCIe 5.0 x4 interface and the other supporting PCIe 4.0 x4. It also has four SATA 6Gb/s ports with RAID support.

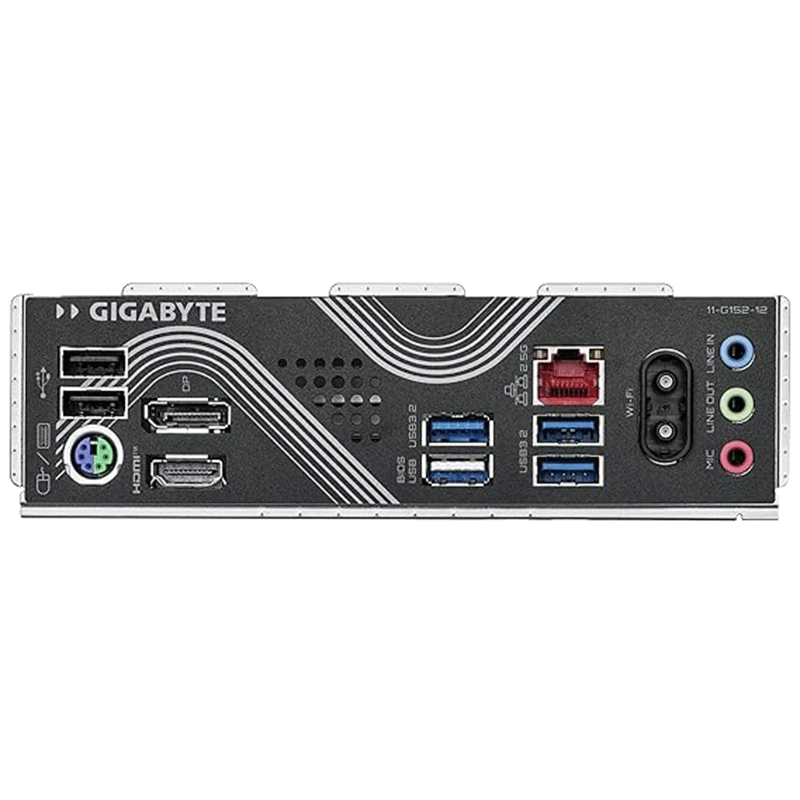

- USB: Offers a variety of USB ports, including a front USB Type-Cport with USB 3.2 Gen 1 support and multiple rear USB 3.2 Gen 1 and USB 2.0/1.1 ports.
- Power Design: Utilizes a digital VRM design, typically 6+1+2 phases (or 8+1+2+1 phases in some revisions), with high-quality power connectors for stable power delivery to the CPU and memory.
- Thermal Management: Features a comprehensive thermal solution including full-metal heatsinks, a VRM Thermal Armor, and an 2 Thermal Guardto prevent SSD throttling. Smart Fan 6 technology provides multiple temperature sensors and hybrid fan headers for efficient cooling control.
- Expansion Slots: Includes one PCIe 5.0 x16 slot for modern graphics cards and other PCIe 4.0 expansion slots.
- DIY-Friendly Design: Incorporates user-friendly “EZ-Latch” designs for toolless installation of M.2 SSDs/heatsinks and graphics cards, along with Q-Flash Plus for updating the BIOS without installing a CPU, memory, or GPU.
Specifications
| Brand | GIGABYTE |
| Model | B860M EAGLE |
| Series | B860M EAGLE WIFI6 |
| Colour | Black |
| Processor Type | Intel Core Ultra 5 |
| Processor Socket | LGA 1851 |
| Memory Technology | DDR5 |
| Maximum Memory Supported | 128 GB |
| Memory Clock Speed | 9066 MHz |
| Graphics Card Interface | PCI Express |
| Manufacturer | Gigabyte |
| Product Dimensions | 26 x 24 x 5cm |
| Weight | 1 kg |
