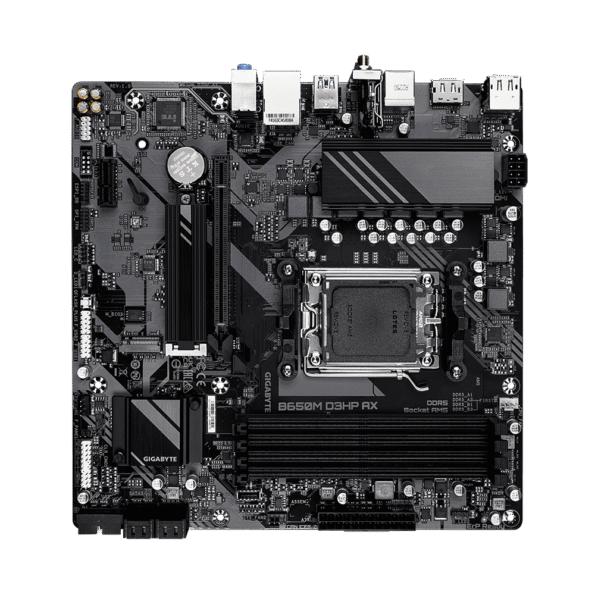

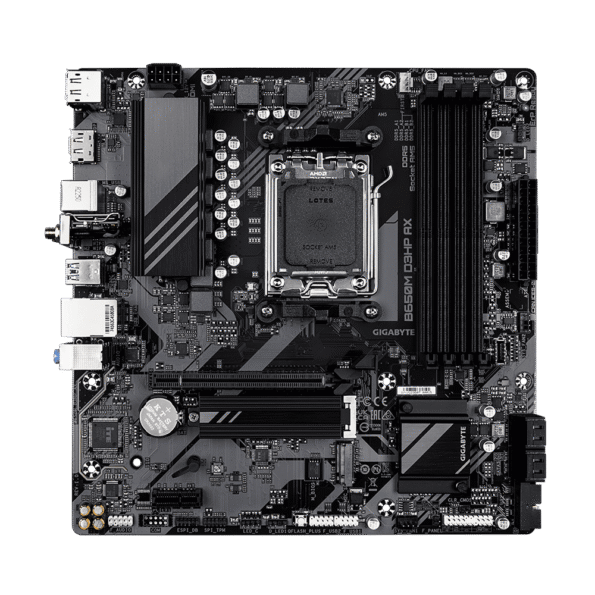

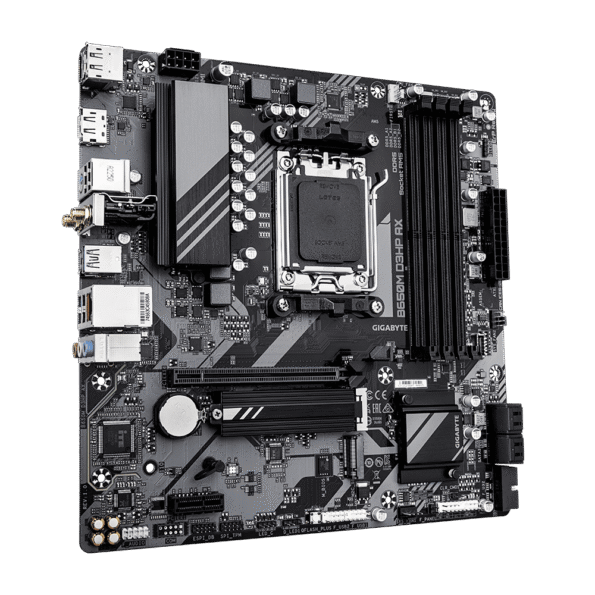

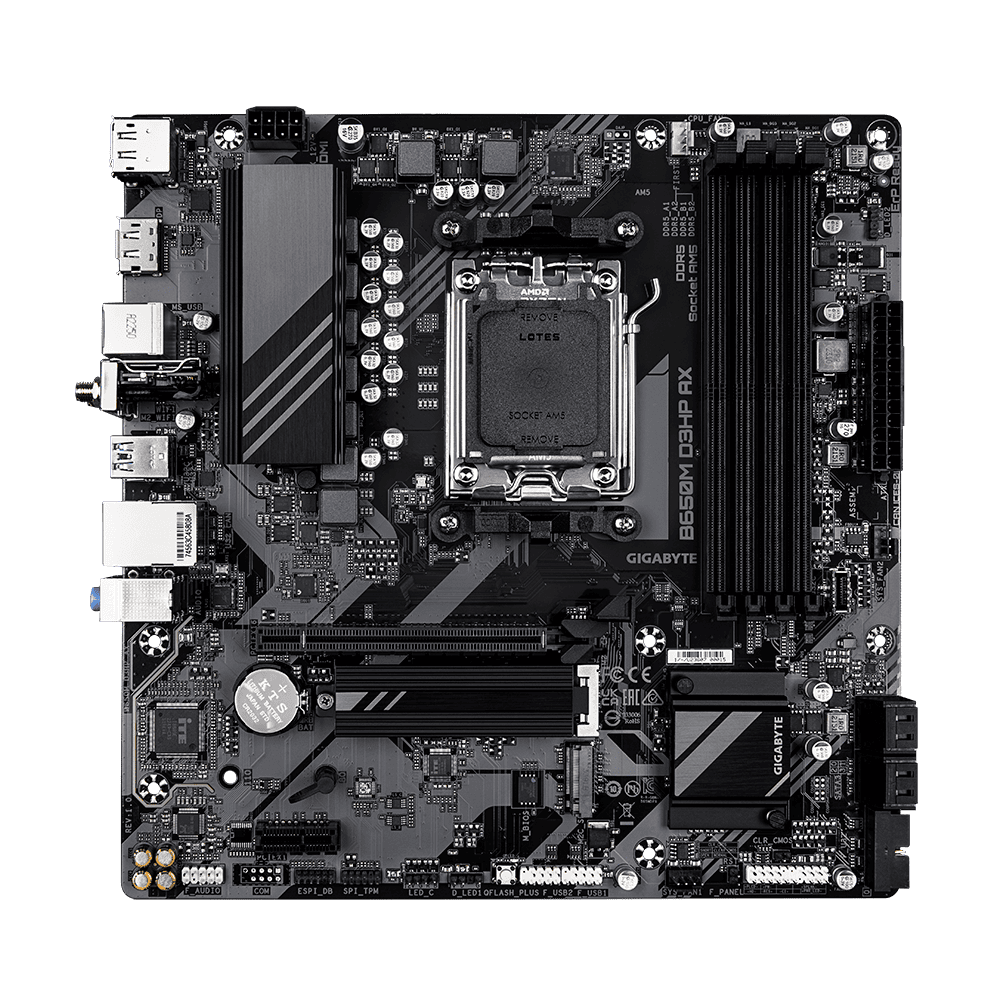

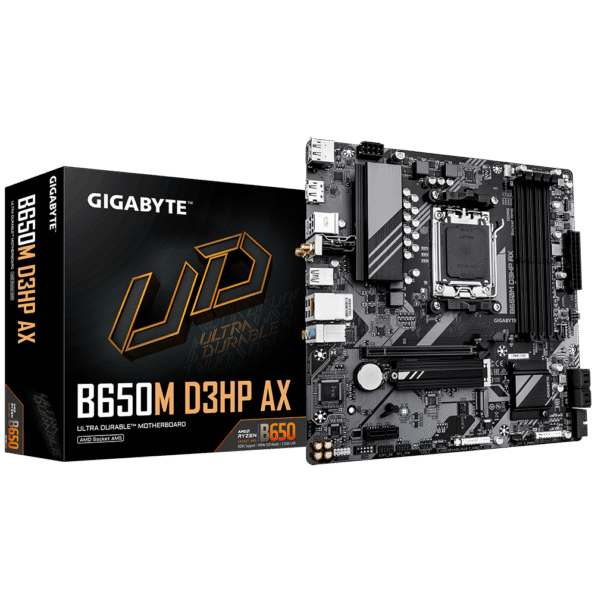

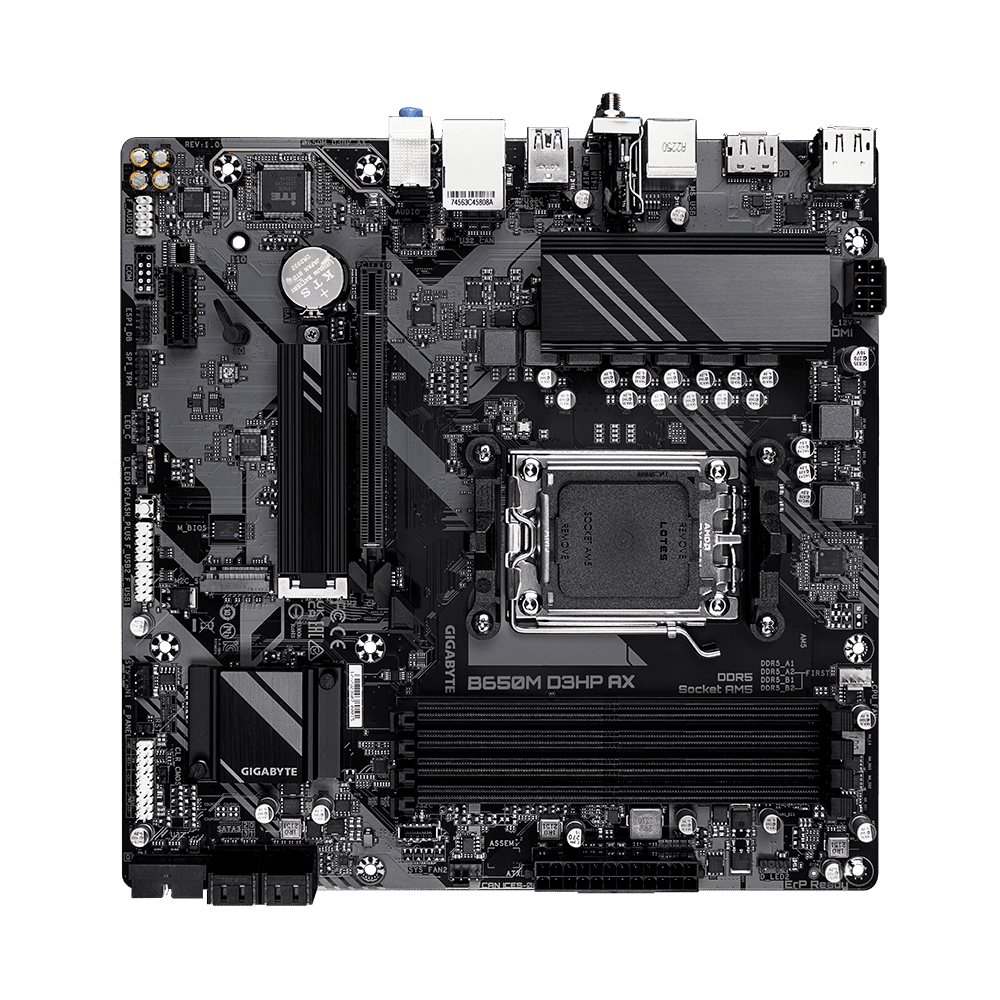

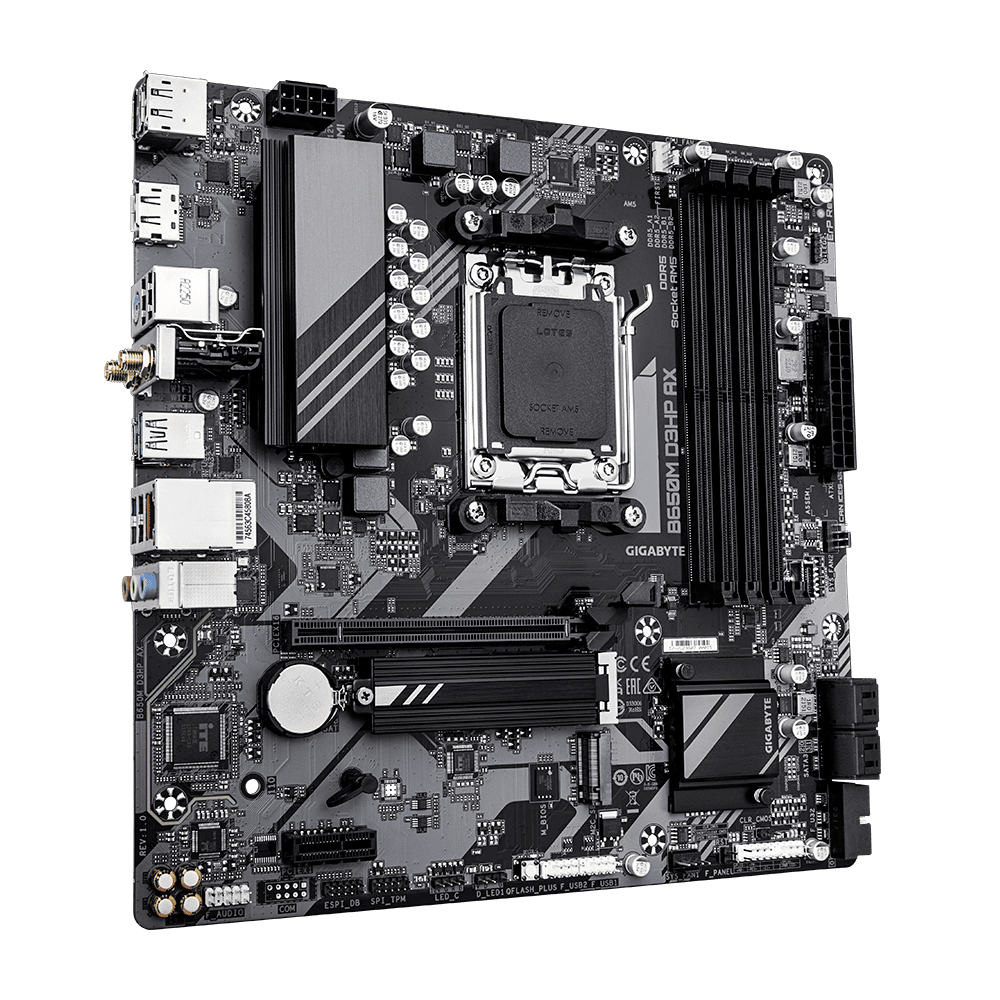

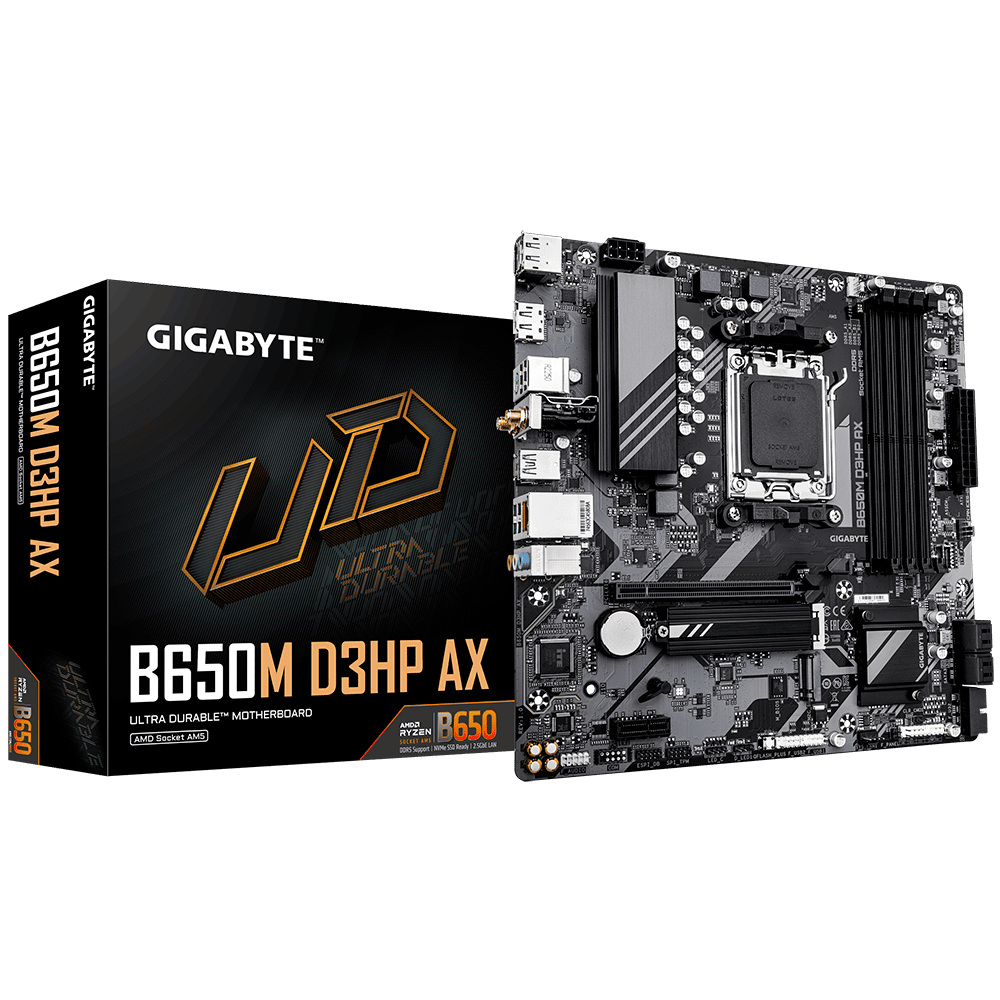

Gigabyte B650M D3HP AX WiFi DDR5 M-ATX Motherboard
₹23,699.00 Original price was: ₹23,699.00.₹12,680.00Current price is: ₹12,680.00.
- AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors
- DDR5 Compatible: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- Sturdy Power Design: Direct 5+2+2 Phases Digital VRM Solution
- Stable Connectivity: 2*PCIe 4.0 x4 M.2, USB 3.2 Gen 1 Type-C
- Fast Networking: 2.5GbE LAN
- Delivery & Return
Delivery
Shipping Rates: Small Size Product(Mouse/Processor)- ₹ 80 Medium Size Product(Speaker/Graphics Card)- ₹ 180 Large Volume Products (Desktop/Monitors)- ₹499 Extra Large Volume Products (Desktop Set)- ₹649 Extra Large Volume Products (Desktop Set)- ₹999 [Note : Keep in mind that delivery charges may change depending on the customer's location and product dimensions.] [Note : After ordering the product, if the delivery charge is extra calculated according to your product and location, then you will have to pay extra delivery charge.] Delivery (Ranchi): Flat rate : ₹ 50 (Total Cost< ₹ 1500) Free shipping applicable Selected Products. Shipping Policy (Shipping Pan India):- All Domestic Orders are processed within 1-2 days, and shipped through registered domestic courier companies and /or speed post only. Shipments are sent within 1-4 days from the date of order or as per the delivery date agreed at the time of order confirmation. NCL Computer is not responsible for any delays in is not liable for any delay in delivery by the courier company / postal authorities and only guarantees to hand over the consignment to the courier company or postal authorities within 1-4 working days from the date of the order and payment or as per the delivery date agreed at the time of order confirmation. NCL Computer is not responsible for any damage of product during transit but we try to assure secure packaging of shipment. Shipping in Ranchi (Local Medium):- All local orders are processed within the same day and shipped through our registered Hyperlocal Courier Partner or in some cases with high-value transactions it is shipped by our employees only in Ranchi. Note that if you buy any product from our website and for any reason the product is returned or the order is canceled then the delivery charge will not be refunded. Delivery Charge May Be Change According Your Delivery Address.Return
We accept return and refund requests only if the product delivered by us is in damaged condition, the wrong product sent, the product is in dead condition, or the product is defective. Buyers will have 3 days and 7 days (7 days is applicable on purchase of a complete PC set) after delivery to inform us in case of any dispute in the order to claim for return or refund. For gaming chairs only replacement is applicable, no refunds will be there for gaming chairs. If the seal of the product is opened and the product is not faulty then return/refund will not be applicable. The buyer needs to bring the issue to our attention either by emailing us (preferred) or by calling us. If the payment was made through our payment gateway then it will be refunded in the same account by which the payment was done, in the case of BANK TRANSFER and COD orders refunds will be done only in the buyer's bank account. Refunds usually take 7-10 working days to reflect in your account. ►If the customer cancels the order after the order is processed, the order packaging and processing charge will be deducted from the customer. ►If due to any reason the product is not delivered or the product is in RTO then the delivery charge will not be refunded.Help
Give us a shout if you have any other questions and/or concerns. Email: info@nclcomputer.com Phone: +91 8002570066 - Ask a Question
Features:
- AMD Socket AM5:Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
- Unparalleled Performance:5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5:4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
- EZ-Latch:PCIe x16 Slot with Quick Release Design
- Fast Networks:Wi-Fi 6E 802.11ax & 2.5GbE LAN
- Extended Connectivity:2*DP, HDMI
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
802.11ax Wi-Fi 6E:
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
2.5GbE LAN:
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
PCIe 4.0 Hardware Design:
GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
High-End Audio Capacitors:
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard:
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Smart Fan 6:
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
-
CPU
AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) -
Chipset
AMD B650
-
MemorySupport for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
-
Onboard GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version.- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. Support for up to triple-display at the same time (Graphics specifications may vary depending on CPU support.)
-
AudioRealtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
-
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
-
Wireless Communication moduleRealtek® Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless (Actual data rate may vary depending on environment and equipment.)
-
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
-
Storage Interface1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
-
USBCPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 1 port on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
-
Internal I/O Connectors1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
-

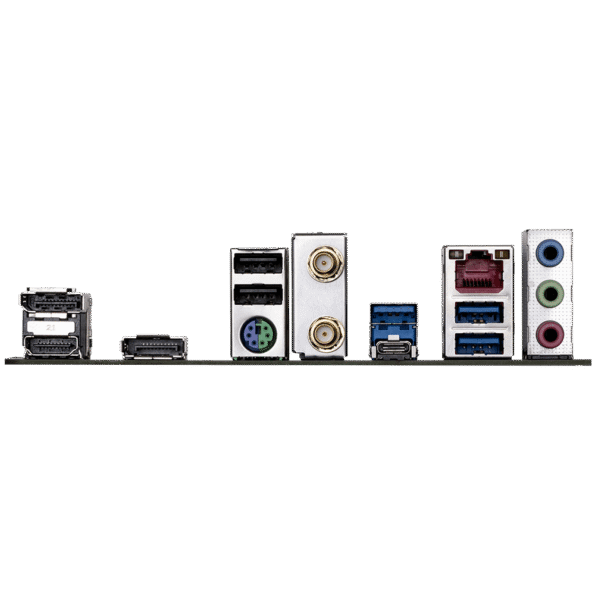

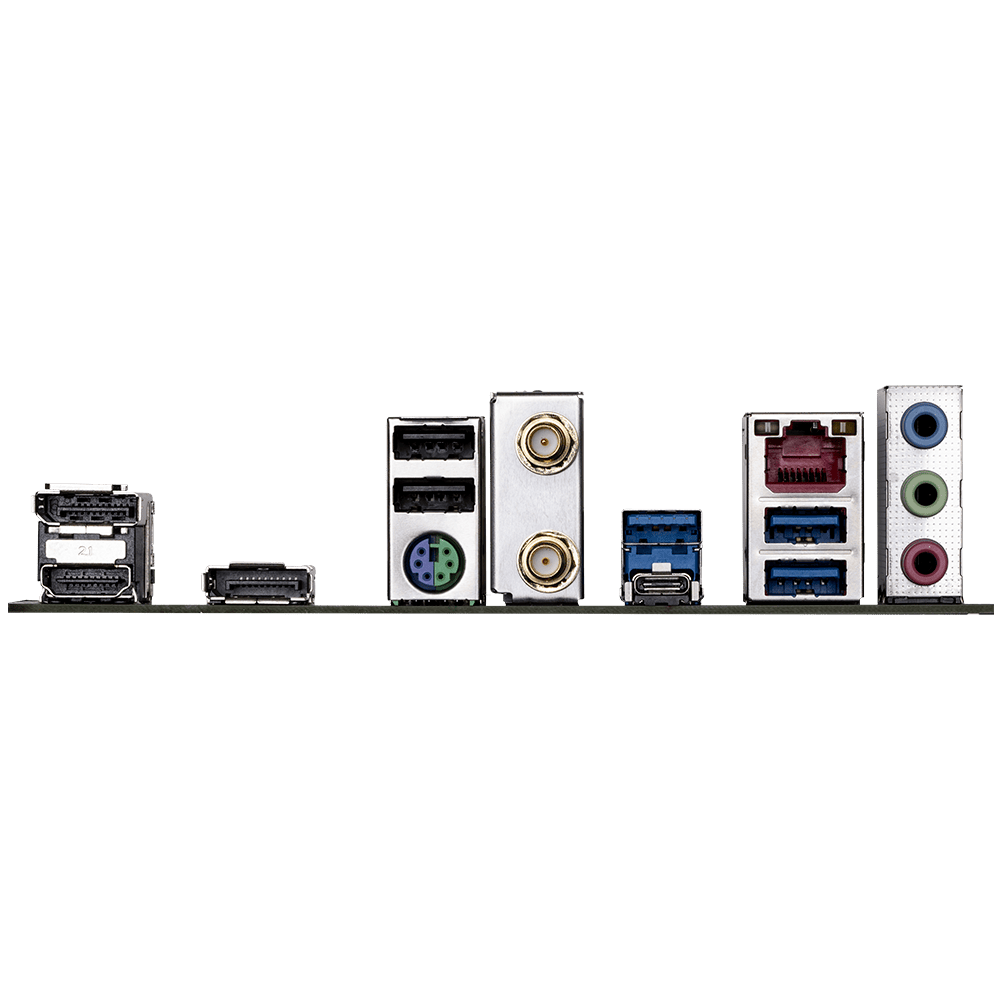

Back Panel Connectors1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x DisplayPorts 1 x RJ-45 port 3 x audio jacks
-
I/O ControlleriTE® I/O Controller Chip
-
H/W MonitoringVoltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
-
BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Unique FeaturesSupport for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash Support for Q-Flash Plus
-
Bundled SoftwareNorton® Internet Security (OEM version) LAN bandwidth management software
-
Operating SystemSupport for Windows 11 64-bit Support for Windows 10 64-bit
-
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
