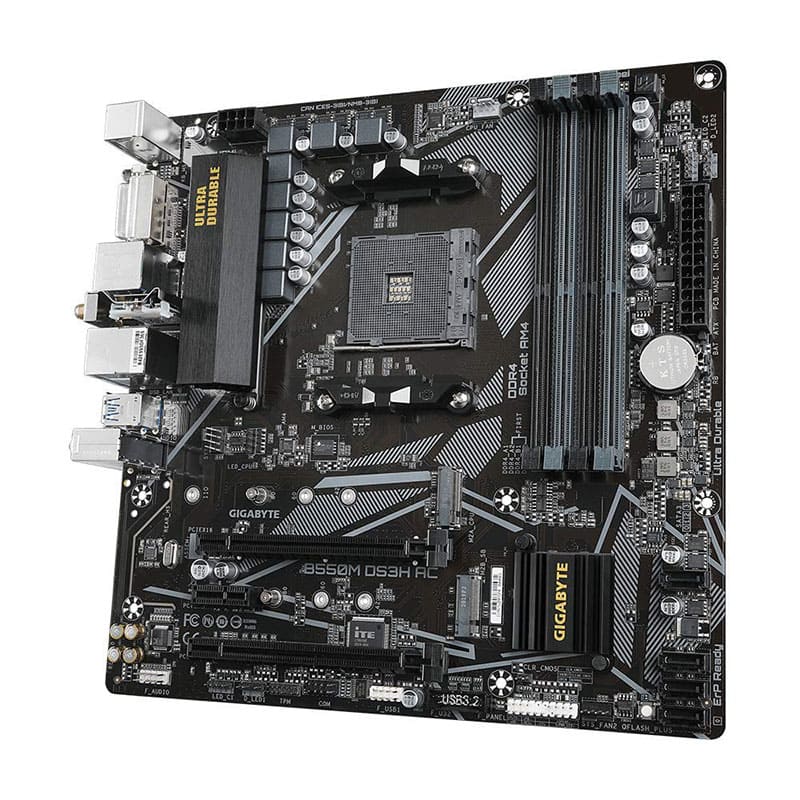

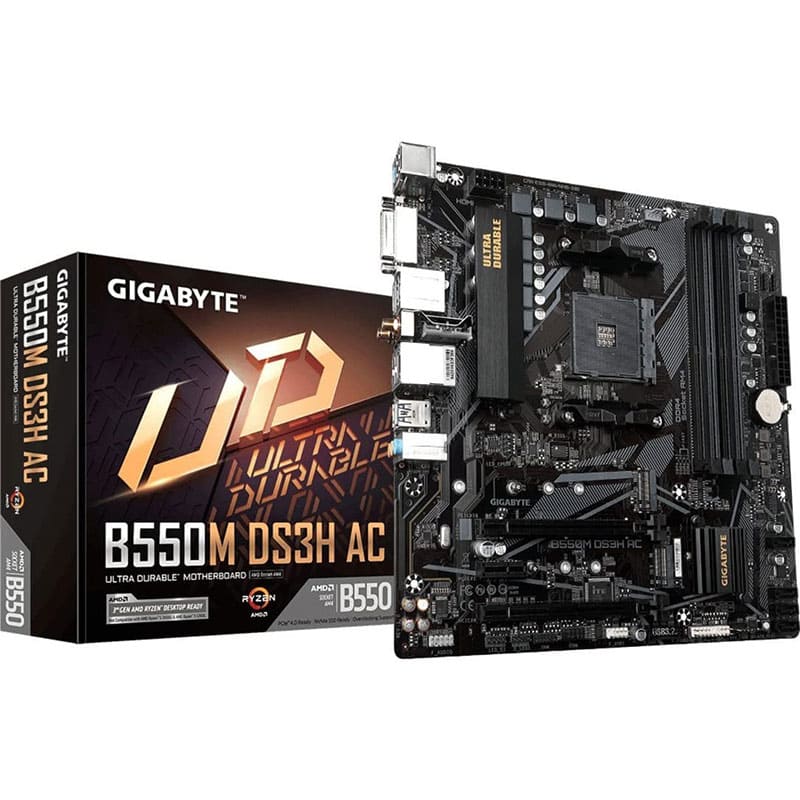

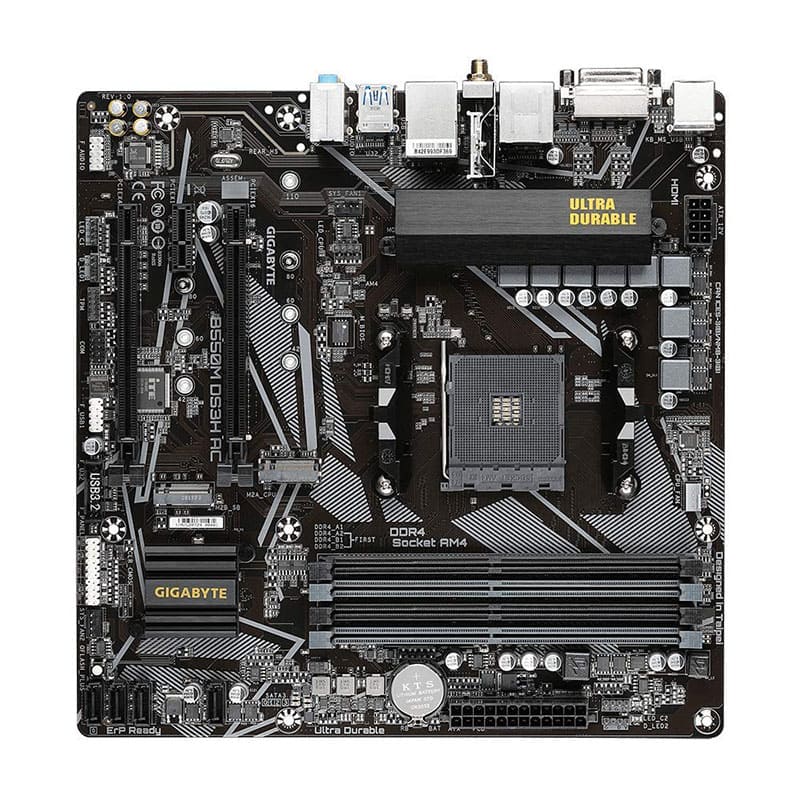

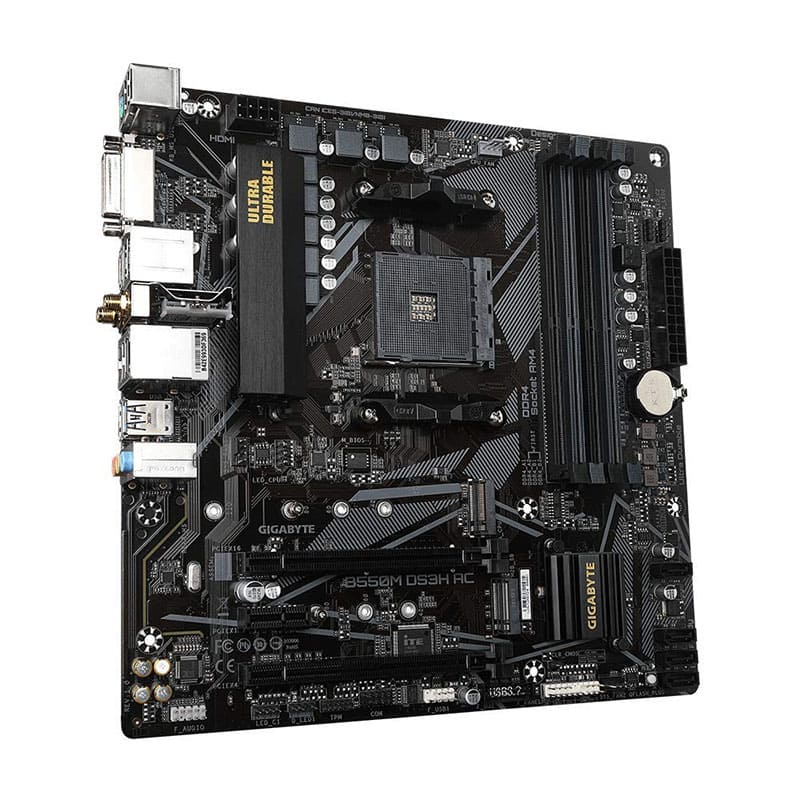

Gigabyte B550M DS3H AC (Wi-Fi) M-ATX Motherboard
₹14,750.00 Original price was: ₹14,750.00.₹10,499.00Current price is: ₹10,499.00.
- Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable PCIe 4.0 Ready x16 Slot
- Rear HDMI & DVI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Onboard Intel Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna
- Delivery & Return
Delivery
Shipping Rates: Small Size Product(Mouse/Processor)- ₹ 80 Medium Size Product(Speaker/Graphics Card)- ₹ 180 Large Volume Products (Desktop/Monitors)- ₹499 Extra Large Volume Products (Desktop Set)- ₹649 Extra Large Volume Products (Desktop Set)- ₹999 [Note : Keep in mind that delivery charges may change depending on the customer's location and product dimensions.] [Note : After ordering the product, if the delivery charge is extra calculated according to your product and location, then you will have to pay extra delivery charge.] Delivery (Ranchi): Flat rate : ₹ 50 (Total Cost< ₹ 1500) Free shipping applicable Selected Products. Shipping Policy (Shipping Pan India):- All Domestic Orders are processed within 1-2 days, and shipped through registered domestic courier companies and /or speed post only. Shipments are sent within 1-4 days from the date of order or as per the delivery date agreed at the time of order confirmation. NCL Computer is not responsible for any delays in is not liable for any delay in delivery by the courier company / postal authorities and only guarantees to hand over the consignment to the courier company or postal authorities within 1-4 working days from the date of the order and payment or as per the delivery date agreed at the time of order confirmation. NCL Computer is not responsible for any damage of product during transit but we try to assure secure packaging of shipment. Shipping in Ranchi (Local Medium):- All local orders are processed within the same day and shipped through our registered Hyperlocal Courier Partner or in some cases with high-value transactions it is shipped by our employees only in Ranchi. Note that if you buy any product from our website and for any reason the product is returned or the order is canceled then the delivery charge will not be refunded. Delivery Charge May Be Change According Your Delivery Address.Return
We accept return and refund requests only if the product delivered by us is in damaged condition, the wrong product sent, the product is in dead condition, or the product is defective. Buyers will have 3 days and 7 days (7 days is applicable on purchase of a complete PC set) after delivery to inform us in case of any dispute in the order to claim for return or refund. For gaming chairs only replacement is applicable, no refunds will be there for gaming chairs. If the seal of the product is opened and the product is not faulty then return/refund will not be applicable. The buyer needs to bring the issue to our attention either by emailing us (preferred) or by calling us. If the payment was made through our payment gateway then it will be refunded in the same account by which the payment was done, in the case of BANK TRANSFER and COD orders refunds will be done only in the buyer's bank account. Refunds usually take 7-10 working days to reflect in your account. ►If the customer cancels the order after the order is processed, the order packaging and processing charge will be deducted from the customer. ►If due to any reason the product is not delivered or the product is in RTO then the delivery charge will not be refunded.Help
Give us a shout if you have any other questions and/or concerns. Email: info@nclcomputer.com Phone: +91 8002570066 - Ask a Question
- Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable PCIe 4.0 Ready x16 Slot
- Rear HDMI & DVI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Onboard Intel Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna
1 in stock
- 6 Cores & 12 Threads, 19 MB Cache
- This product comes in a safe packaging
- It ensures a hassle-free usage
1 in stock
Features:
AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, 802.11ac WIFI, Realtek GbE LAN, Smart Fan 6 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
6+2 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs - Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- Onboard 802.11ac Wireless & BT 4.2 with WIFI Antenna
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Realtek GbE LAN with Bandwidth Management
Rear HDMI, DVI, and DisplayPort Support - RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
GIGABYTE B550 motherboards maximize your PC’s potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
Faster and Better Coverage with Intel Dual Band 802.11ac WIFI + BT 4.2 Module
The onboard 802.11ac WIFI module from Intel® supports Dual Band and up to 433 Mbps, 3x faster WIFI speed than 802.11n and also support BLUETOOTH 4.2.

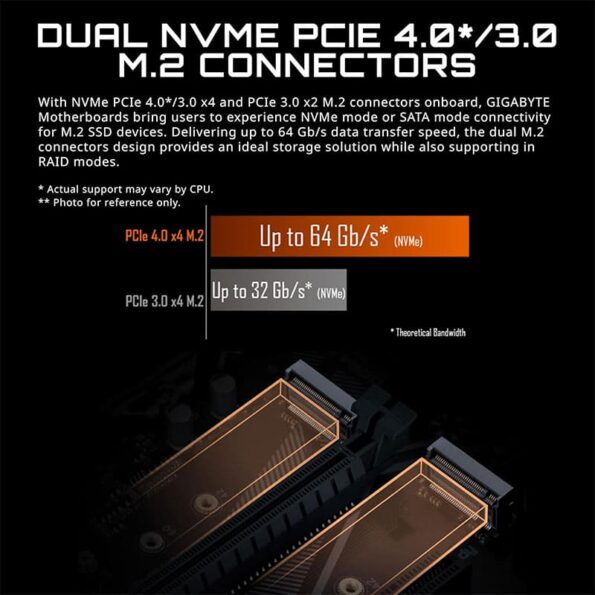

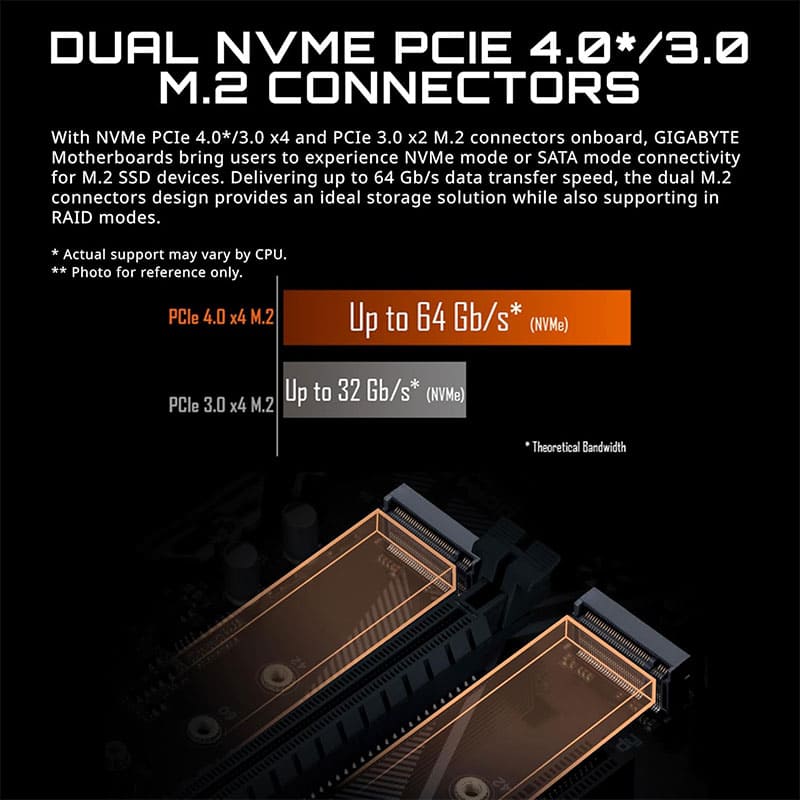

Dual NVMe PCIe 4.0*/3.0 M.2 Connectors
With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.
RGB FUSION 2.0
With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.
With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
Realtek GbE LAN with Bandwidth Management
Realtek Gigabit LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Motherboard | |
Platform | AMD |
Socket | AM4 |
Cpu Type | Ryzen 5000,Ryzen 4000,Ryzen 3000 |
Chipset | B550 |
Memory Speed | up to 4733 |
Max Memory Support | 128 GB |
Supported Memory Type | DDR4 |
Channel Supported | Dual Channel |
Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
Graphics Port | 1 x DVI-D Port,1 x DisplayPort,1 x HDMI |
Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode * Actual support may vary by AMD CPU's specification. - AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: - Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode |
Wireless Networking | WiFi,Bluetooth 4.2 |

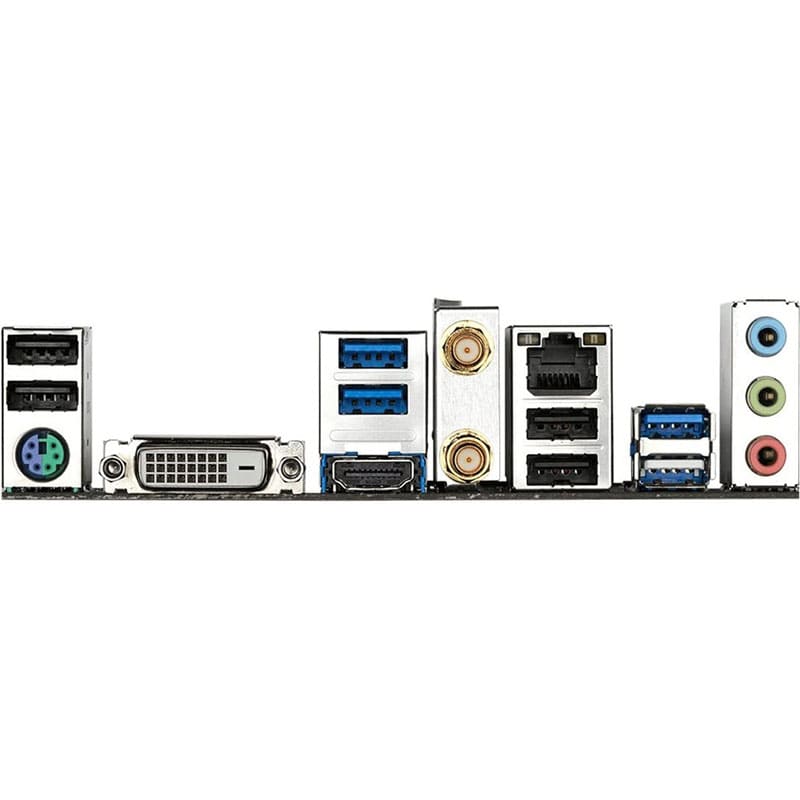

Back Panel I/O Ports | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 2 x SMA antenna connectors 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
Form Factor | Micro-ATX |
Warranty | 3 Years |
