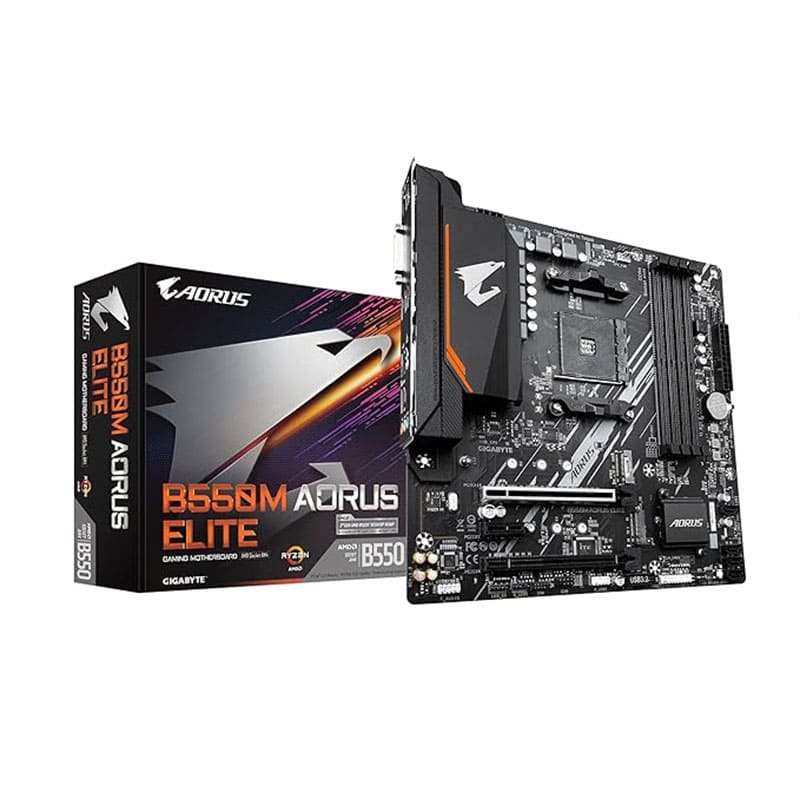

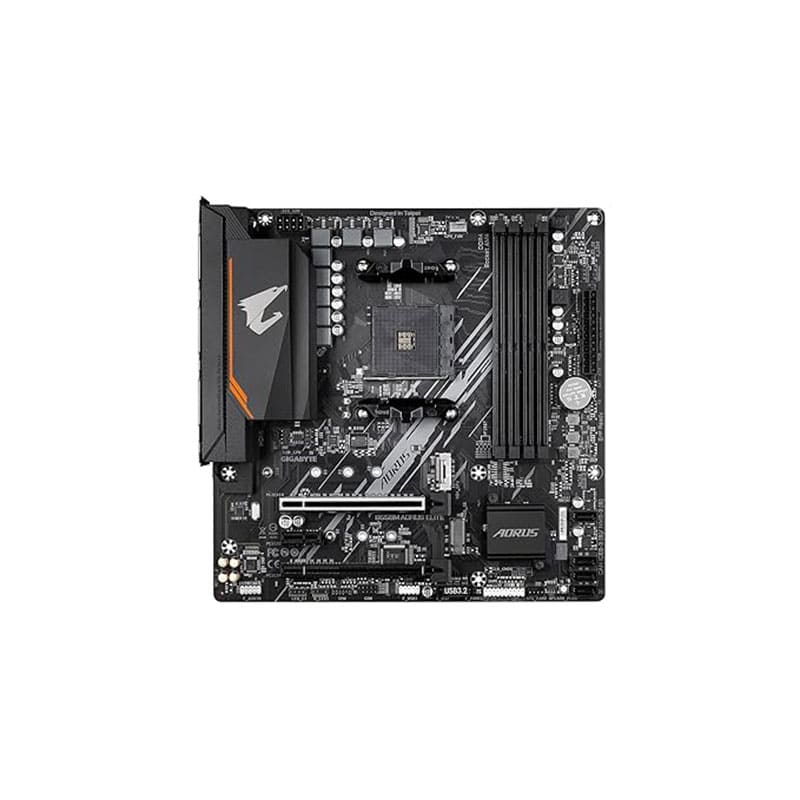

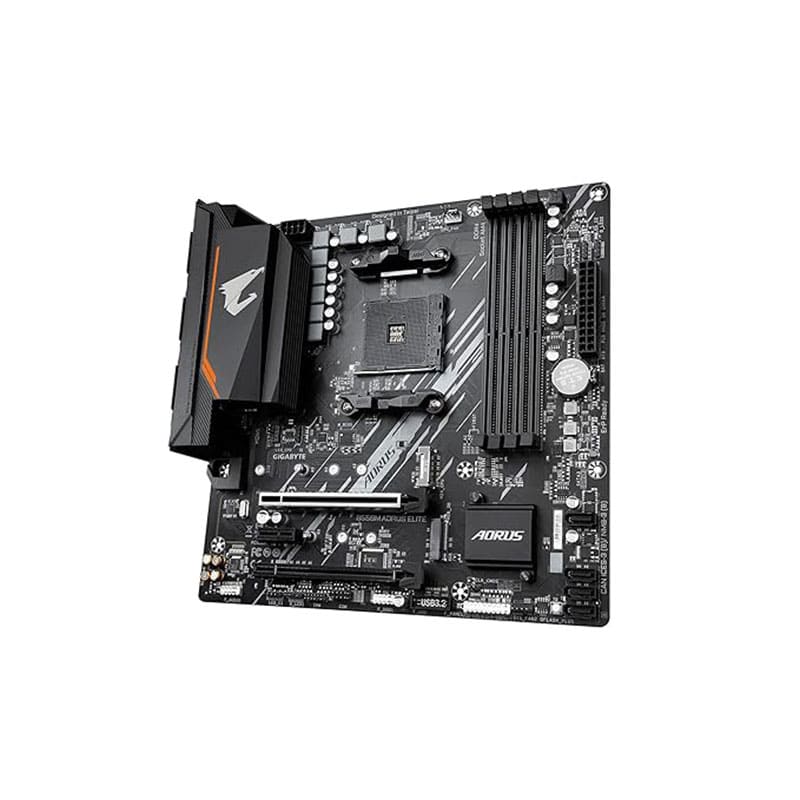

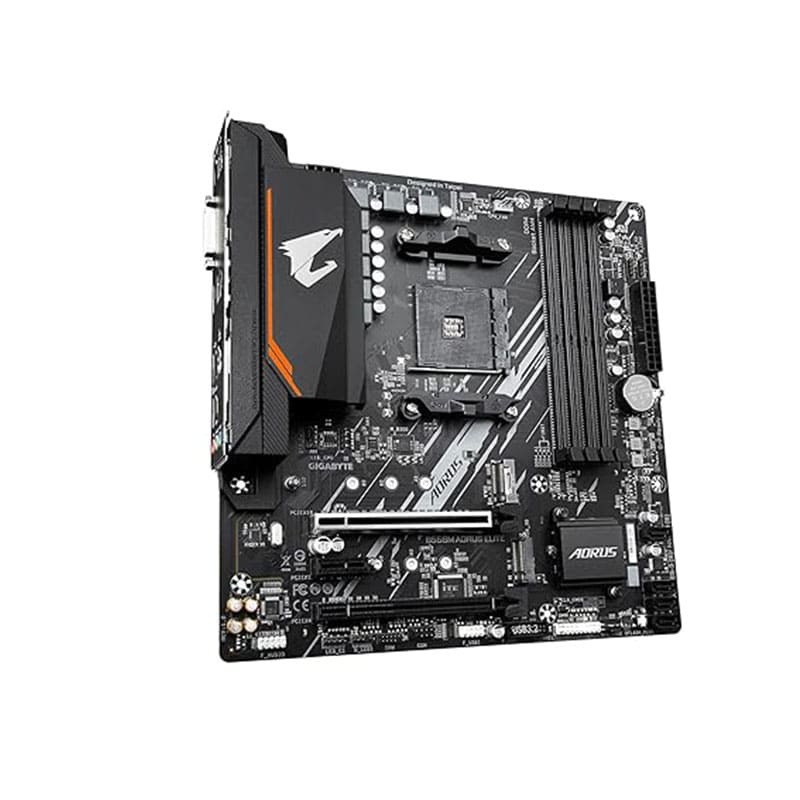

Gigabyte B550M Aorus Elite AX WiFi M-ATX DDR4 Motherboard
₹17,850.00 Original price was: ₹17,850.00.₹12,299.00Current price is: ₹12,299.00.

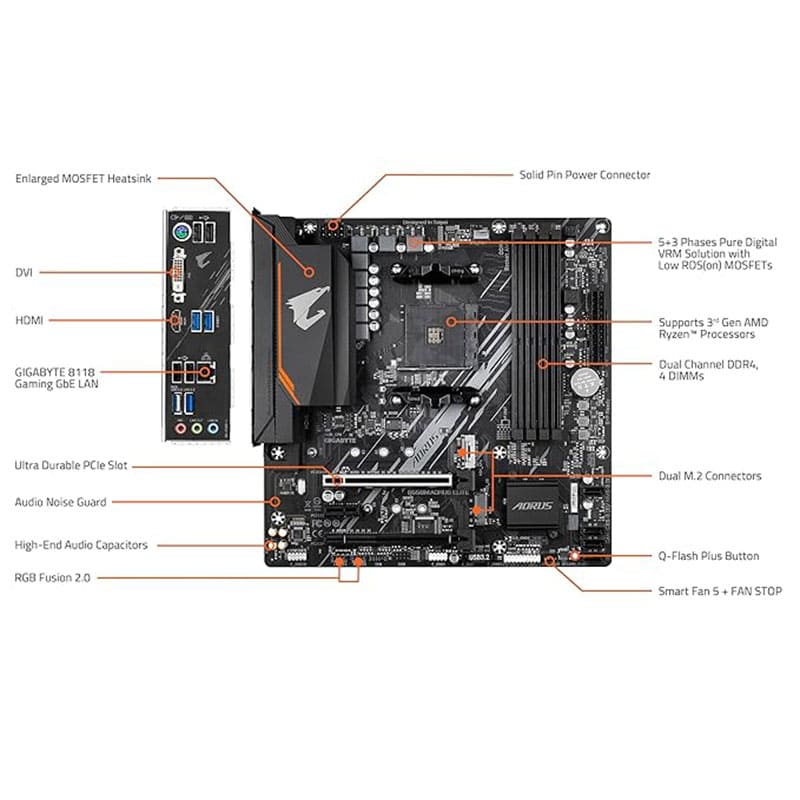

- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- Onboard Wi-Fi 6E 802.11ax & BT 5.3
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Realtek GbE LAN with Bandwidth Management
- Rear HDMI & DVI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Delivery & Return
Delivery
Shipping Rates: Small Size Product(Mouse/Processor)- ₹ 80 Medium Size Product(Speaker/Graphics Card)- ₹ 180 Large Volume Products (Desktop/Monitors)- ₹499 Extra Large Volume Products (Desktop Set)- ₹649 Extra Large Volume Products (Desktop Set)- ₹999 [Note : Keep in mind that delivery charges may change depending on the customer's location and product dimensions.] [Note : After ordering the product, if the delivery charge is extra calculated according to your product and location, then you will have to pay extra delivery charge.] Delivery (Ranchi): Flat rate : ₹ 50 (Total Cost< ₹ 1500) Free shipping applicable Selected Products. Shipping Policy (Shipping Pan India):- All Domestic Orders are processed within 1-2 days, and shipped through registered domestic courier companies and /or speed post only. Shipments are sent within 1-4 days from the date of order or as per the delivery date agreed at the time of order confirmation. NCL Computer is not responsible for any delays in is not liable for any delay in delivery by the courier company / postal authorities and only guarantees to hand over the consignment to the courier company or postal authorities within 1-4 working days from the date of the order and payment or as per the delivery date agreed at the time of order confirmation. NCL Computer is not responsible for any damage of product during transit but we try to assure secure packaging of shipment. Shipping in Ranchi (Local Medium):- All local orders are processed within the same day and shipped through our registered Hyperlocal Courier Partner or in some cases with high-value transactions it is shipped by our employees only in Ranchi. Note that if you buy any product from our website and for any reason the product is returned or the order is canceled then the delivery charge will not be refunded. Delivery Charge May Be Change According Your Delivery Address.Return
We accept return and refund requests only if the product delivered by us is in damaged condition, the wrong product sent, the product is in dead condition, or the product is defective. Buyers will have 3 days and 7 days (7 days is applicable on purchase of a complete PC set) after delivery to inform us in case of any dispute in the order to claim for return or refund. For gaming chairs only replacement is applicable, no refunds will be there for gaming chairs. If the seal of the product is opened and the product is not faulty then return/refund will not be applicable. The buyer needs to bring the issue to our attention either by emailing us (preferred) or by calling us. If the payment was made through our payment gateway then it will be refunded in the same account by which the payment was done, in the case of BANK TRANSFER and COD orders refunds will be done only in the buyer's bank account. Refunds usually take 7-10 working days to reflect in your account. ►If the customer cancels the order after the order is processed, the order packaging and processing charge will be deducted from the customer. ►If due to any reason the product is not delivered or the product is in RTO then the delivery charge will not be refunded.Help
Give us a shout if you have any other questions and/or concerns. Email: info@nclcomputer.com Phone: +91 8002570066 - Ask a Question
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- Onboard Wi-Fi 6E 802.11ax & BT 5.3
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Realtek GbE LAN with Bandwidth Management
- Rear HDMI & DVI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
1 in stock
AMD 5000 Series Ryzen 5 5700X Desktop Processor 8 cores 16 Threads 36 MB Cache 3.4 GHz Upto 4.6 GHz AM4 Socket 500 Series Chipset (100-100000926WOF)
Out of stock
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- Onboard Wi-Fi 6E 802.11ax & BT 5.3
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Realtek GbE LAN with Bandwidth Management
- Rear HDMI & DVI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP - Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
WiFi 6E 802.11ax + BT 5.3 Module
Wireless solution 802.11ax WIFI 6E with new dedicated 6GHz band, enables gigabit wireless performance and provides smooth video streaming, better gaming experience. Moreover, Bluetooth 5.3 provides 4X range over BT 4.2 and with faster transmission.
Benefit of WiFi 6E
- Dedicated spectrum in 6GHz band for less interference
- 4X better network capacity, no traffic jams especially in those dense area with lots of devices
- Network efficiency increase for better user experience
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
RGB FUSION 2.0
With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.
With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
Brand | Gigabyte |
Model Name | B550M AORUS ELITE AX |
CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors |
Chipset | AMD B550 |
Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
Onboard Graphics | Integrated in the AMD Ryzen™ 5000 G-Series/4000 G-Series Processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB |
Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
Wireless Communication module | Realtek® Wi-Fi 6E RTL8852CE WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode * Actual support may vary by AMD CPU's specification. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
USB | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |

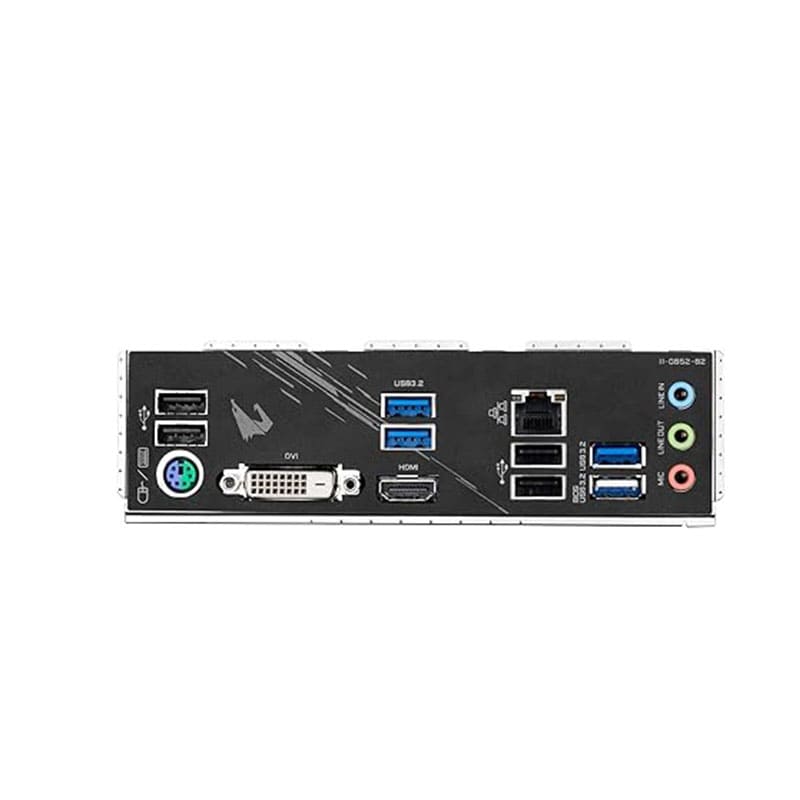

Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control |
BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Warranty | 3 Years |
5 |
|
0 |
4 |
|
0 |
3 |
|
0 |
2 |
|
0 |
1 |
|
0 |
EXCELLENT Based on 1041 reviews Sudeep Sinha2025-05-27Trustindex verifies that the original source of the review is Google. Very nice place in India Anil Murmu2025-05-26Trustindex verifies that the original source of the review is Google. One of the best computer shop in ranchi. Vivek Mishra2025-05-25Trustindex verifies that the original source of the review is Google. One of tehe best store in Ranchi to purchase any product. Must recommended. I got my PC assembled here and got the best price along with service here. Ansh acount2025-05-22Trustindex verifies that the original source of the review is Google. Very good behaviour and very good pc made in only 10000 with best specs possible. Thank you ncl computers Kritik Bhagat2025-05-18Trustindex verifies that the original source of the review is Google. I recently had the chance to explore NCL Computer, and overall, my experience was quite positive. Aman Thakur2025-05-07Trustindex verifies that the original source of the review is Google. the all are too kindly and help in my point of view this is the best place for giving serices Chanda Oraon2025-05-01Trustindex verifies that the original source of the review is Google. Ncl Computer nice
